AUTOMATIC HARVEST UMBRELLA

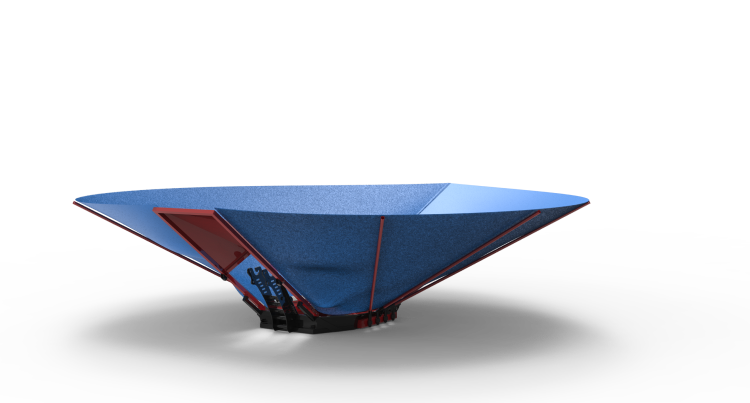

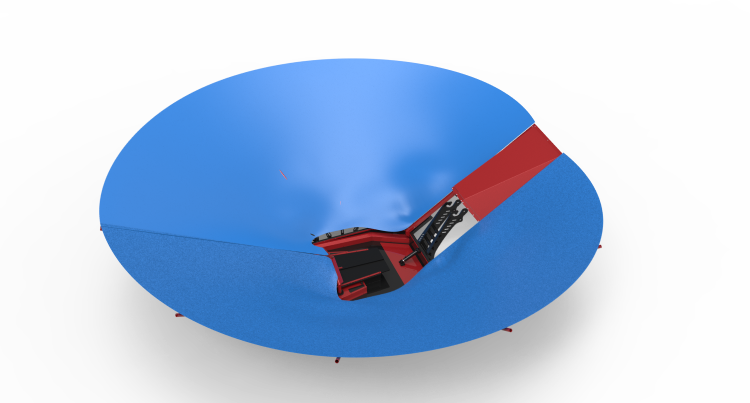

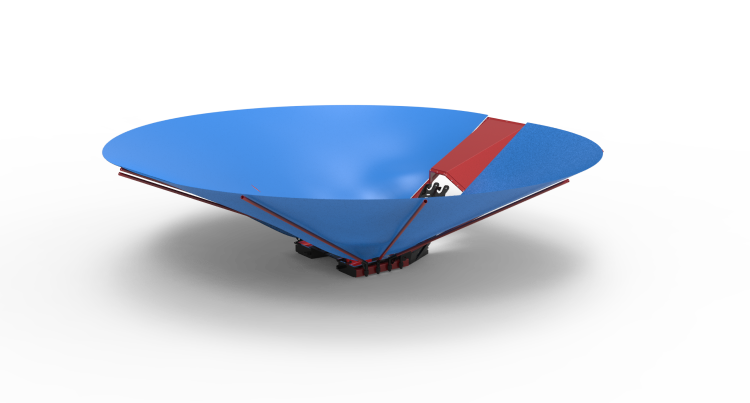

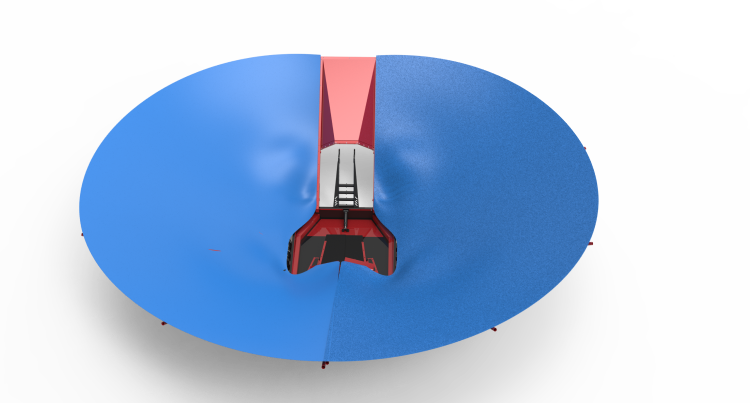

Automatic Harvest Umbrella is an auxiliary equipment that works coupled with EFE Body Shaker Harvest Machine produced by Çınarlı Makina; and it prevents the products such as olives, walnuts, hazelnuts; industrial apricots, sour cherries, plums, from falling on the ground. The Automatic Harvest Umbrella that is controlled by a proportional valve controlled remote controller, can be produced in different diameters according to the planting closeness of the trees in the garden. Thanks to the umbrella that can be opened and closed quickly, it saves time and labor in the harvest, and it ensures that the harvesting process is carried out in a healthy way.

  • Bunker Width: 1500 mm
  • Bunker Capacity: 6 Crates
  • Maximum Tree Diameter: 600 mm
  • Control with valve-controlled remote control
  • Electrostatic acrylic paint on DKP sheet
  • The material of the umbrella is PVC cover
  • Hydraulic controlled discharging cover

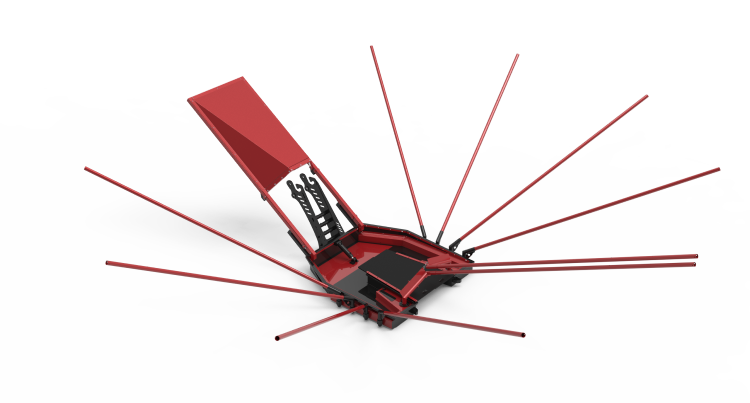

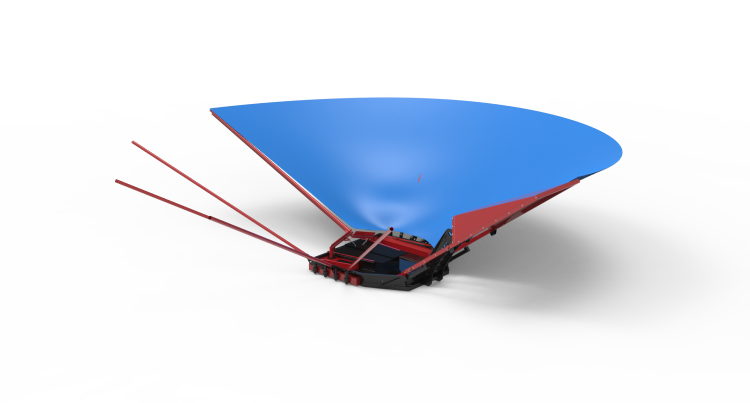

  • Hydraulically controlled opening and closing the umbrella
  • Possibility to use by connecting to the same tractor with the harvest machine
  • Possibility to use by connecting to the harvest machine




WHEN THE UMBRELLA IS OPEN;



  • Total Length:6450 mm
  • Total Width: 7000 mm
  • Total Height:1710 mm

   WHEN THE UMBRELLA IS CLOSED;



  • Total Length: 3530 mm
  • Total Width:2350 mm
  • Total Height:1780 mm
    • Length 6450 mm
    • Width 7000 mm
    • Height 1710 mm
    • Control Unit Hydraulic Valve
